Multiple Groups Blades PCB Cutting Machine / PCB Depaneling Machine / Adjustable the edge of blades pitch

Name: Multiple Groups Blades PCB Cutting Machine PCB Depaneling Machine Adjustable the edge of blades pitch
Brand: YUSH
Price: 9800 USD

China Multiple Groups Blades PCB Cutting Machine / PCB Depaneling Machine / Adjustable the edge of blades pitch wholesale

Brand Name : YUSH

Model Number : YSVJ-650

Certification : CE Mark

Place of Origin : JiangSu

MOQ : 1 set

Price : 9800 USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100

Delivery Time : 3 days to 7 days

Packaging Details : wooden package

Voltage : 220V/50Hz or 110V

Machine weight : 210KG

Machine Size : L2160mm*W850mm*H1050mm

PCB Thickness : 0.6-5.0mm

Max PCB width : 240mm or 300mm

Max component height : 30 mm

Blade material : SKD61

Blades quantity : 20 groups of upper and lower blades , total:40pcs

Contact Now

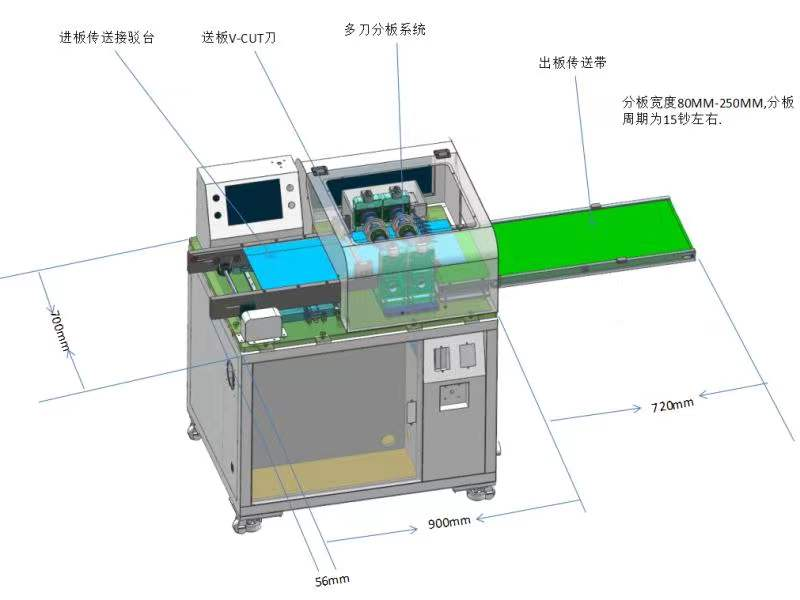

Multiple Groups Of Blades PCB Depaneling Machine (Model:YSVJ-650)

Regular consumer operations and compliments on YuTube.

http://https://youtu.be/ETpXVMWK0OI

Features:

● The conveying speed can be adjusted.

● The single separated PCB width is 8-20 mm. Max cutting width 300mm;

● Machine with automatic feeding system;

● Machine is equipped with safety protection device.

● Suitable cutting material of PCB :aluminum ,FR4,glass fiber.

● Equipped with SMEMA connector ,easy to connect with upstream machine

● The machine adopts the touch screen and PLC which can monitor production information.

● MDS-900 is equipped with multiple sets of blades which can separate the whole light

bar board one time.

● The distance between upper and lower cutter can be precisely adjusted, the separating

thickness of PCB range is : 0.8MM-3.0MM.

Specification parameters:

YSVJ-650- Specifications
Model	YSVJ-650
Total Dimension	L2160mmW850mm H1050mm
Inlet conveying length	850mm
Vacuum Cleaner	Machine with vacuum cleaner
Outlet conveying length	850mm
Separating blades number	20 groups of upper and lower blades , total:40pcs
Maximum Cutting Length:	Unlimited
PCB Thickness	0.6-5.0mm
Separating PCB bar number at one time	11 LINES
Separting width of single PCB	8-20MM
Max PCB width	240mm or 300 mm
Max component height	30 mm
Blade material	SKD61
Blade average lifespan	1,000,000 times (1.2m long , 3mm thick PCB)
Voltage	220V/50Hz or 110V
Machine weight	210KG
The spacing between the blades	Spacer
Power	230V
